FILTER PENTAIR CLARIS PRIME CARTRIDGE EVERPURE - filtro

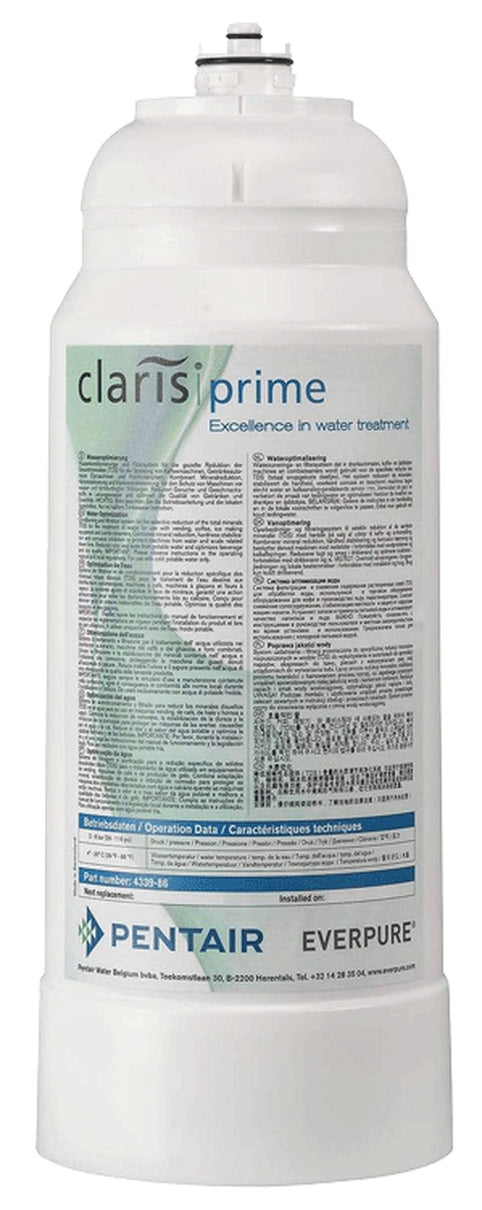

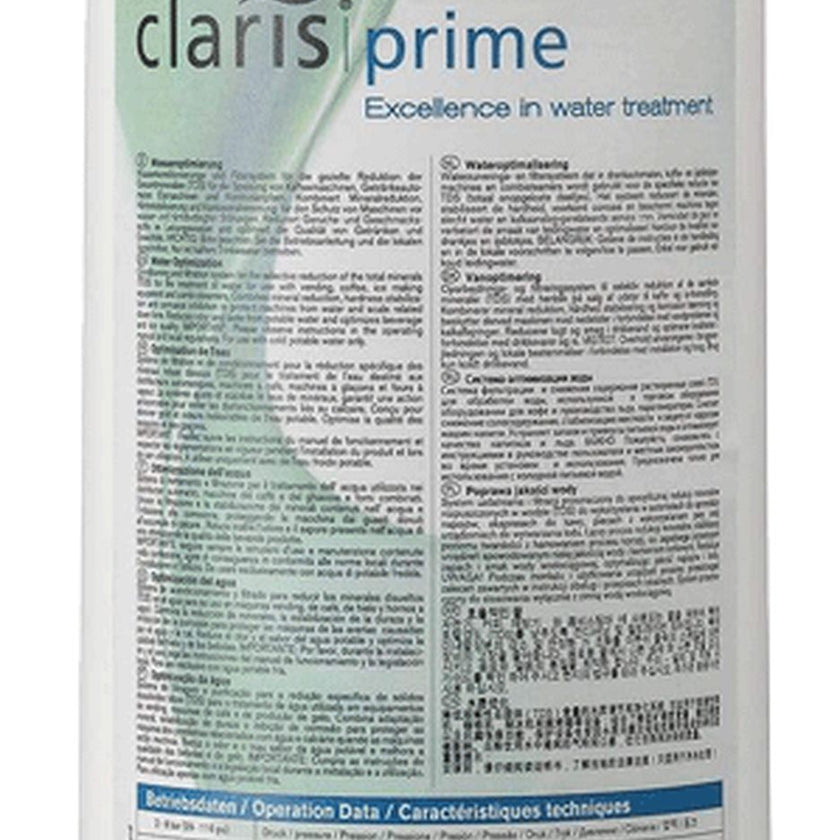

EVERPURE® CLARIS PRIME FILTER CARTRIDGE

DESCRIPTION:

HIGH CAPACITY ADJUSTABLE ION-SELECTIVE FILTER OFFERS TAILORED REDUCTION OF TOTAL DISSOLVED SOLIDS, CHLORIDES AND SULPHATES

APPLICATIONS

Coffee

Espresso

Direct Injection Combi Ovens

Hot Drink Vending

Please note: Everpure Claris Ultra Duoblend Head sold separately.

Observação: A cabeça(suporte) do filtro deve ser comprada separadamente.

BENEFITS:

Unique water conditioning technology combines mineral adaptation, mineral stabilization and corrosion inhibition

Features a 6-stage filtration process that includes:

• Prefiltration
• Hardness adjustment
• Anionic mineral adjustment
• Fine filtration
• Highly efficient carbon block
• Solid membrane filter

• Protects equipment from scale and mineral-induced corrosion in areas with high total dissolved solids (TDS), chloride (Cl-) and sulphate (SO4) content in the feed water.
• Tailored adjustment of TDS reduction, Cl- and SO4 levels.
• Removes harmful contaminants and unpleasant odors and tastes.
• Removes particles down to five (5) microns for highest equipment protection

INSTALLATION TIPS

The system can be operated freestanding, lying horizontally or vertically. Water pressure at the filter system inlet must not exceed 116 psi (8 bar). A pressure reducer valve must be installed on the water supply side of the filter system if the inlet pressure exceeds 116 psi (8 bar). Shutoff valve must be installed upstream of the filter. Refer to Installation, Operation & Maintenance Manual for cartridge flushing and start-up.

OPERATION TIPS

Change Claris Prime Cartridge when its precalculated water volume has been reached or at least once per year.

Change cartridge when capacity is reached.

Always flush the filter cartridge at time of installation and cartridge change.

Do not use hardness test strips to check for hardness reduction. Please use a titration kit to check for hardness reduction.

Always test for TDS and chloride content of incoming water

SIZING

Service Flow Rate - 1.0 gpm (3.79 Lpm)

Rated Capacity

1,255 gallons (4,750 L) for Espresso

557 gallons (2,110 L) for Direct Injection

Combi Ovens

Note: This capacity is based on influent water TDS of ppm, hardness of 180 ppm and chloride 60 ppm with standard bypass settings.

SPECIFICATIONS

Pressure Requirements 29 - 116 psi (2 - 8 bar), non-shock

Temperature Limits: 39 - 86°F (4 - 30°C)

Overall Dimensions: 18.56” H x 6.89” D (47.1 x 17.5 cm)

Electrical Connection: None required

Please note: Everpure Claris Ultra Duoblend Head sold separately.

Observação: A cabeça(suporte) do filtro deve ser comprada separadamente.
